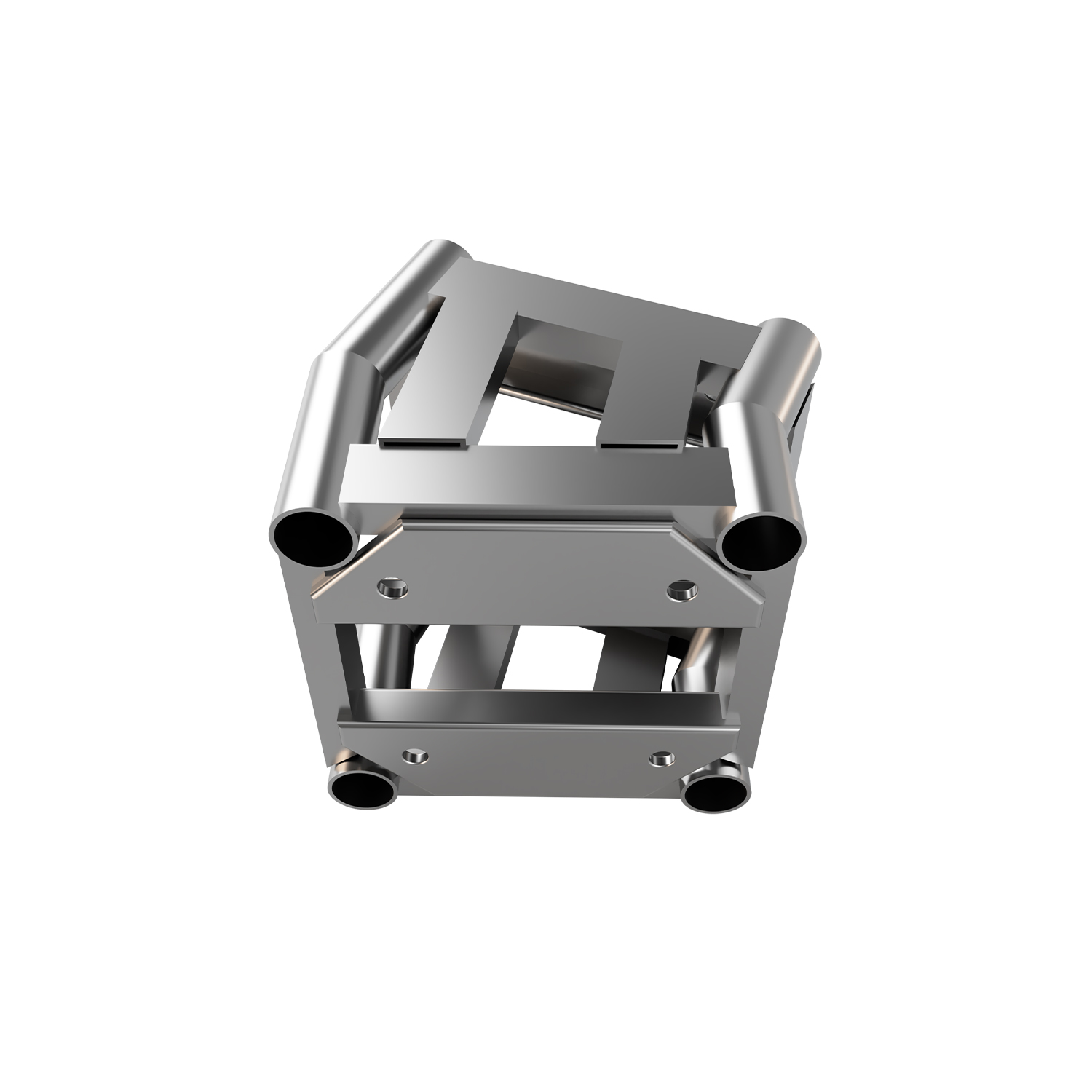

22.5° Angled Corner Block – 12″ × 12″ Box Truss

22.5° Angled Corner Block – 12″ × 12″ Box Truss

A 22.5-degree corner block for 12″ x 12″ box truss is a precision-engineered truss component designed to create angled transitions within square truss structures. This specialized corner section allows designers and riggers to form smooth, controlled turns, enabling complex layouts such as octagons, multi-sided frames, angled roofs, and custom architectural shapes while maintaining structural integrity and compatibility with industry-standard truss systems.

Key Features & Purpose
Purpose: Connects straight 12″ x 12″ truss sections to create a precise 22.5-degree angle, ideal for custom geometric layouts.
Compatibility: Designed for use with industry-standard 12″ x 12″ box truss systems.
Design: Fixed-angle corner block that provides consistent alignment and clean geometry.
Applications: Commonly used in stage production, concerts, exhibitions, trade shows, and architectural truss structures.

How It’s Used
Standard Corners: Traditional corner blocks typically create a 90-degree turn.
22.5° Corner Block: This component connects two straight truss sections at a 22.5-degree angle, allowing gradual directional changes and more refined, multi-sided truss designs.

Finish Options:
Standard aluminum finish
Also available in black powder-coated finish — AB12-022-B
